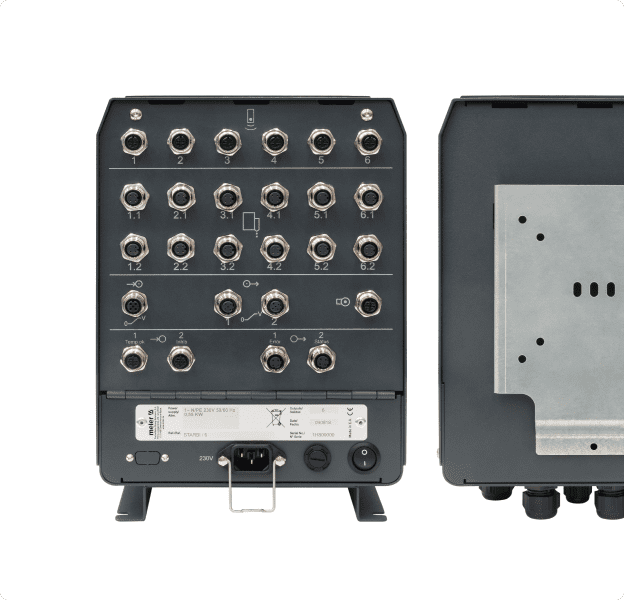

Programming of channels and shots
Up to 6 independently programmable channels and up to 8 beads per pattern, with the possibility of individual shooting of each bead.

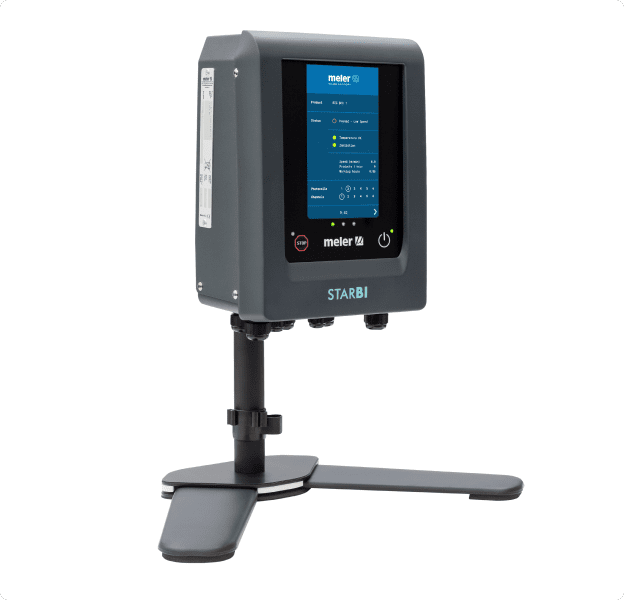

Time and distance programming
Enables products to be programmed by time or distance (normal, variable or repetitive mode)

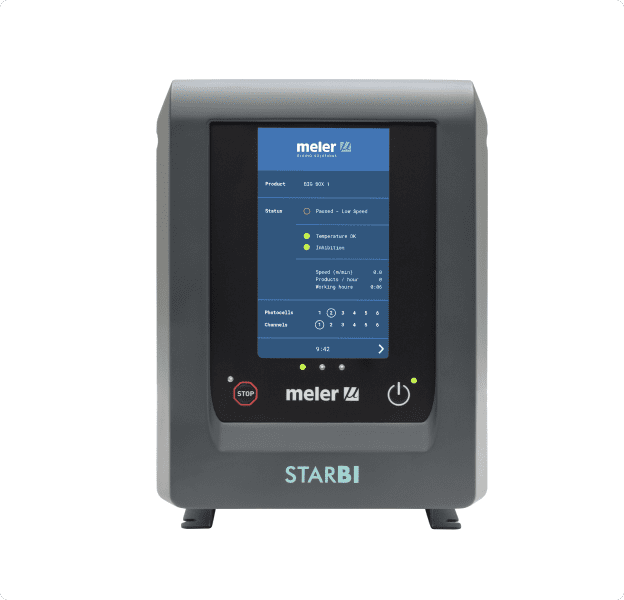

7″ touch screen
With an intuitive user menu for optimal configuration of the device according to requirements.

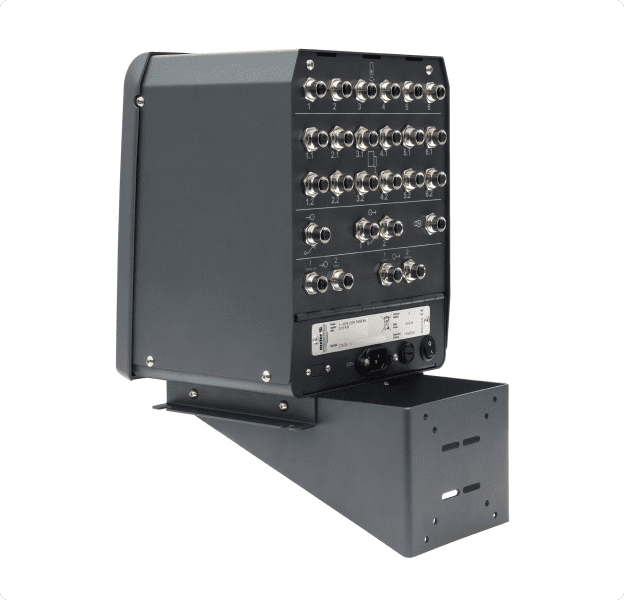

Multiple patterns
Capable of storing up to 100 patterns, it has a USB port for software installation and backup as well as Modbus and Profibus communications to select the product to be measured.
Precision and speed
Speed up to 600 metres per minute with trigger speeds of less than 1 ms.

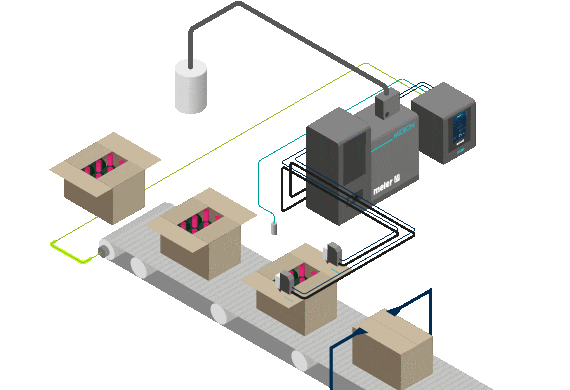

Easy handling and control
Option to make changes online, which facilitates continuous implementation without the need to stop production. Quick, easy access to the equipment’s interior.

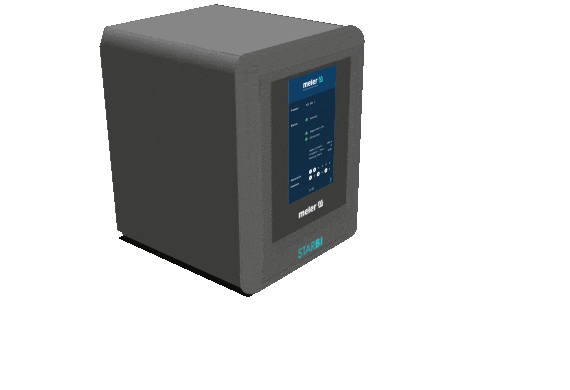

High-security connectors
The activation signal is provided by high security DIN quick connectors.
WHERE TECH MEETS MAGIC BENEFITS THAT CHANGE EVERYTHING.
High tech within everyone's reach
Ease of use and installation
Maximum accessibility
Full connectivity
Improved performance
FIELD TEST | StarBI pattern controller
FULL CONTROL OF THE APPLICATION
Improve any hot melt system with the integration of the Starbi pattern controller.
Get profitable results in terms of ergonomics and comfort.
Specifications that change everything
- SUPPLY VOLTAGE
100-264 V / 47-63 Hz - POWER
up to 25 W/channel (per pair of outputs) - CHANNEL OUTPUT VOLTAGE
24 VDC - SCREEN
Touch 7” - OUTPUT 0-10V (UNINSULATED)
24 VDC (power); 0 to 10 VDC (signal) - OUTPUT 0-10V (ISOLATED)
0 to 10 VDC (signal) - PHOTOCELL/ENCODER
24 VDC (power supply); 24 VDC PNP output (signal) - NUMBER OF CHANNELS
2, 4 or 6 - NUMBER OF APPLICATORS PER CHANNEL
2 - NUMBER OF LINES PER CHANNEL
8 (individual dotting) - NUMBER OF PHOTOCELLS
up to 6 (according to number of channels)
- NUMBER OF ENCODERS/INPUT 0-10 V
1/1 - CHANNEL INHIBITION
1 - MAXIMUM MAIN MACHINE SPEED
600 m/min - MINIMUM APPLICATION SPEED
Programmable - PROGRAMMING RANGE (ENCODER)
1-6550,0 mm - PROGRAMMING RANGE (TIMES)
1-6550,0 ms - PROGRAMMING TOLERANCE
±0,1 - BASIC LANGUAGES
German, Spanish, French, English, Italian and Portuguese - COMMUNICATIONS (OPTIONAL)
Modbus / Profibus - USB CONNECTION
For backup and software updates (Windows app)
