One applicator, multiple formats
V- label is a labelling applicator that adapts the coating width to the specific size of each label.
Seamless machine integration
It adapts easily to any installation due to its compact design and simple configuration.
Versatility
Designed to boost the productivity of industrial labelling systems.
WHERE TECH MEETS MAGIC BENEFITS THAT CHANGE EVERYTHING
Improve process efficiency
Increased productivity thanks to its versatility
Operator autonomy to change formats
Configurable on customer's request
Specialisation by industry sector
Improved operational performance
Specifications that change everything
- Suitable for any label format from 0 to 140 mm (2 models for a whole range: 0/100 mm and 0/140 mm)
- Bottle/can diameter ≽ 50mm
- ∞ patterns
- 3 different options for hydraulic connection
- Precise adjustment of the application weight using an adjustable MSU.FL module
- Pneumatic open/single shutter control (AOSC)
- On-demand configuration of the applicator (left/right)
TECHNICAL SPECIFICATIONS
- HIGH APPLICATION SPEED
Value depending on solenoid valve, adhesive and coating width. - MAXIMUM LABEL WIDTH
From 0 to 100 mm or from 0 to 140 mm (depending on version). manual adjustment of the coating width by untightening the screws and sliding the adjustment lid. - MACHINE POSITION
Left or right side (depending on version). - COATED STRIP THICKNESS
Precise adjustment via the adjustable MSU.FL module - MAXIMUM ADHESIVE PRESSURE
30 bar - CONTROL OF THE APPLICATION
3/2 solenoid valve – 5/2 UF solenoid valve (a single pneumatic single-acting module) - MAXIMUM PNEUMATIC OPENING PRESSURE
6 bar. recommended: 5 bar. dry, clean, unlubricated air. - TEMPERATURE CONTROL
Pt100; Ni120 (from the melter unit) - MAXIMUM APPLICATOR TEMPERATURE
200°C - POWER SUPPLY
230 VAC, 50/60 Hz (from the melter unit) - ELECTRICAL POWER OF THE APPLICATOR
- Version 100mm: 700W
- Version 140mm: 900W
- ENVIRONMENTAL CONDITIONS
- Ambient temperature: 0-40°C
- Relative humidity: 90% HR máx. (at 30°C)
- OPTIONS (ON REQUEST)
- NTC temperature control technology
- Damp-proof version
Characteristics
- Versatility
- Usability
- Speed of response
- Accessibility
Configurations of these applicators
Integration in labelling machines with several gluing stations: the first station is used for a swirl wrapping on the container to pull the label, and the second station is used for lateral coating of the inner edge of the label to attach it to the container
There’s a bit of magic in all science The supported modules are as follows
Ball-closing module with air-operated opening and spring closing.
MSU.FL module
Industries
Hot melt systems for graphic arts
Application of high-speed adhesives in bookbinding and paper converting

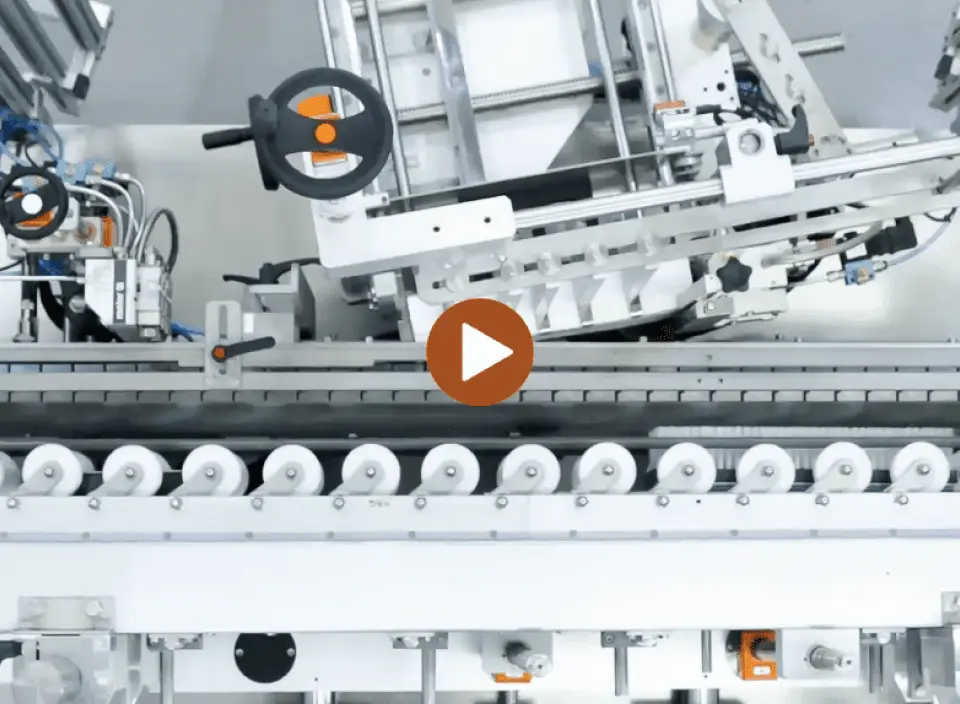

FIELD TEST | ETIMA
ETIMA Labelling machinery manufacturer
Integrates in its linear labelling machine (Model ML-L/B) all the Meler gluing system composed by
Swirl station with a 4 modules applicator.
Adjustable coating head: V-Label for the lamination of the wrap-around label located on the label holder of the main machine.
